  Ferrari 575M Maranello


  Article Image gallery (7) Specifications User Comments (40)

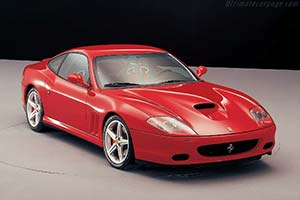

Click here to open the Ferrari 575M Maranello gallery
Country of origin:Italy
Produced from:2002 - 2005
Introduced at:2002 Geneva Motor Show
Designed by:Pininfarina
Source:Company press release
Last updated:January 01, 2005
Download: All images
Page 1 of 1
Click here to download printer friendly versionThe letter M, an abbreviation of modificato (modified), underlines the fact that the 575M Maranello is an improved version of the 550 Maranello it replaces. Key amongst these, apart from the engine is the introduction of an F1 type gearbox, first time on a 12 cylinder Ferrari road car.
The 12 cylinder engine in the 575M Maranello, maintains the 65 degree V angle, four overhead camshafts, four valves per cylinder, the light alloy block, heads and oil tank and the dry sump lubrication system, with two scavenge pumps and one sender pump, separate reservoir and individual radiators. The objectives fixed for the new V12 engine in the 575M Maranello were to increase both the power curve as well as the torque. These increases in performance across the board have been achieved through a variety of modifications applied to the 12 cylinder. In particular these are an increase in capacity, a higher compression ratio, new fluid dynamics for the intakes and more general changes aimed at improving the efficiency and the management system of the power unit.
The optimum weight distribution, with a 50-50 split between the axles, with the driver on-board, has been achieved thanks to a transaxle design which features a combined rear mounted gearbox and differential unit with conical torque and autolocking differential in the same unit. The transmission on the new 575M Maranello is also fitted with the electro-hydraulic 'F1' control unit mounted at the rear of the car, in order to minimise response time and to ensure a favourable operating temperature. The F1 gearchange on the 575M Maranello has been refined in order to produce maximum efficiency from the use of the manual levers mounted on the back of the steering wheel, as this gives the best response for sports driving. The driver has two main ways of changing gear manually via the console-mounted controls: a more sporty change (Sport) or one aimed at a more relaxed driving style. Both are linked to an analogue control of the suspension damping. The principal benefits of the F1 change on the 575M Maranello are a quicker gear change coupled with the control of the damping when gears are selected. Along with the manual F1 change, which Ferrari has produced as the primary use of the electro-actuated transmission, there are two further options which can be selected: automatic and low grip.
As for the chassis, one of the factors which has the biggest impact on the car's road-holding is the new adaptive set-up, based on a system of independently controlled damping at all four corners of the car. The system selects the ideal ride height for any condition, with two choices: Sport, which is selected for a more sporty ride, improving traction: Comfort, which gives a more comfortable ride, absorbing road bumps. The braking has also been modified to cope with the increased performance of the vehicle, especially in terms of avoiding fade and improving response under braking.
When it came to looking at the style of the vehicle, the thinking behind it is to retain the balance and sober looks, which invested it with the status of an instant classic, fitting in perfectly with Ferrari's return to a front engine high performance car. Modifications were limited to those required to deal with the technical changes: different shape and size for the air intakes in the new front end of the car, with refinement of the aerodynamic and fluid-dynamic efficiency and a new treatment for the front spoiler. Finally, the light clusters have been redesigned to produce a new aesthetic, with colour-coded headlamp bodies and grey surround, combined with xenon technology for the dipped beam, with headlamp washers. The wheels are also a new design. On the aerodynamic front, the final iteration brings improved airflow around the wheels and there are small elements which reduce drag, while every detail of the floor has been designed to generate downforce while reducing drag.
