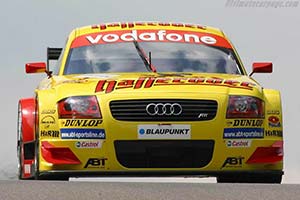

  Audi Abt TT-R


Audi Abt TT-R
Click here to save all images    Image credits: Audi UK

Click here to download printer friendly version The only non factory prepared car to compete in the DTM championship is the TT-R. The car is built by well known German tuner Abt. In the first two seasons the car was tweaked and in the latter half of the 2001 season the TT-Rs were getting on pace and were challenging the dominating Mercedes-Benz for victories. Enough events in the 2002 season were won by by the TT-R driven by Frenchman Aiello to win the championship.

Company press release, last updated before 12 / 01 / 2004

Add your comments on the Audi Abt TT-R

 nice work
Joslin
13-8-2003
The ABT TT-R is a nice peace of work of a comparable small company. By winning the championship they did a really good job!


General specifications
Country of origin Germany
Numbers built N/A
Produced in 2002

Engine
Configuration 90º V8
Location Front, longitudinally mounted
Displacement 3.998 liter / 244 cu in
Bore / Stroke 93.0 mm (3.7 in) / 73.6 mm (2.9 in)
Valvetrain 4 valves / cylinder, DOHC
Fuel feed Bosch MS 2.9.2 Fuel Injection
Aspiration Naturally Aspirated
Power 455 bhp / 339 KW @ 6800 rpm
Torque 510 Nm / 376 ft lbs @ 6000 rpm
BHP/Liter 114 bhp / liter

Drivetrain
Chassis body on tubular frame
Suspension (fr/r) double wishbone, coil springs, adjustable shock absorbers, anti roll bar
Brakes ventilated carbon discs, all-round
Gearbox Hewland 6 speed Sequential
Drive Rear wheel drive

Dimensions
Weight 1080 kilo / 2381 lbs
Length / Width / Height 4322 mm (170.2 in) / 1850 mm (72.8 in) / 1201 mm (47.3 in)
Wheelbase / Track (fr/r) 2600 mm (102.4 in) / 1615 mm (63.6 in) / 1539 mm (60.6 in)

Performance figures
Power to weight 0.42 bhp / kg
