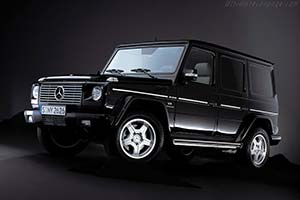

  Mercedes-Benz G 55 AMG


Mercedes-Benz G 55 AMG Mercedes-Benz G 55 AMG Mercedes-Benz G 55 AMG Mercedes-Benz G 55 AMG Mercedes-Benz G 55 AMG Mercedes-Benz G 55 AMG
Click here to save all images    Image credits: DaimlerChrysler

Click here to download printer friendly version It's now exactly 25 years since the Mercedes-Benz G-Class made its first public appearance. Since then, these models have made a name for themselves all over the world and have been sold to over 182,000 customers. The supercharged V8 G 55 AMG, the latest high point in the career of this one-of-a-kind classic, is now on display in Geneva. The eight-cylinder power plant of this new addition to the G-model family develops476 hp and peak torque of 700 Newton metres, giving this robust off-roader new dimensions in power and assurance. Offering 34 per cent more power and 32 per cent more torque than the predecessor Naturally Aspirated V8 model, the new G 55 AMG demonstrates once again that the Mercedes-Benz G-Class is a vehicle with enormous potential.

Before the supercharged AMG engine was fitted in the G-Class, numerous modifications and new developments were necessary in the area of the powertrain, chassis and brake system. A new oil sump provides reliable lubrication in all operating situations, while boost air temperature is reduced by an engine-mounted air-to-water intercooler and two front-mounted low-temperature coolers. A more powerful electric suction fan keeps the coolant temperature in the correct range at all times.

A new-design, larger-diameter AMG sports exhaust system with high-performance catalytic converter technology reduces exhaust back pressure and ensures compliance with the EU4 emissions standards. Visual and audible confirmation of the G 55 AMG's potency is provided by the two oval twin-tailpipes which emerge at an angle in front of the rear wheels and by the typical throaty AMG V8 engine sound.

Company press release, last updated before 12 / 01 / 2004

Add your comments on the Mercedes-Benz G 55 AMG



General specifications
Country of origin Germany
Numbers built N/A
Produced from 2004 - 2011
Introduced at 2004 Geneva Motor Show
Successor

Engine
Configuration 90º V8
Location Front, longitudinally mounted
Displacement 5.439 liter / 331.9 cu in
Bore / Stroke 97.0 mm (3.8 in) / 92.0 mm (3.6 in)
Compression 9.0:1
Valvetrain 3 valves / cylinder, SOHC
Fuel feed Bosch Fuel Injection
Aspiration Supercharger
Power 476 bhp / 355 KW @ 6100 rpm
Torque 700 Nm / 516 ft lbs @ 2650 rpm
BHP/Liter 88 bhp / liter

Drivetrain
Chassis unitary steel
Suspension (fr/r) live axle, transverse control arms, coil springs, gas pressurized dampers
Steering recirculating ball, power assisted
Brakes ventilated discs, all-round, ABS
Gearbox 5 speed Automatic
Drive All wheel drive

Dimensions
Weight 2550 kilo / 5621.8 lbs
Length / Width / Height 4662 mm (183.5 in) / 1864 mm (73.4 in) / 1931 mm (76 in)
Wheelbase / Track (fr/r) 2850 mm (112.2 in) / 1475 mm (58.1 in) / 1475 mm (58.1 in)

Performance figures
Power to weight 0.19 bhp / kg
Top Speed 210 km/h (130 mph) (limited)
0-60 mph 5.5 s
