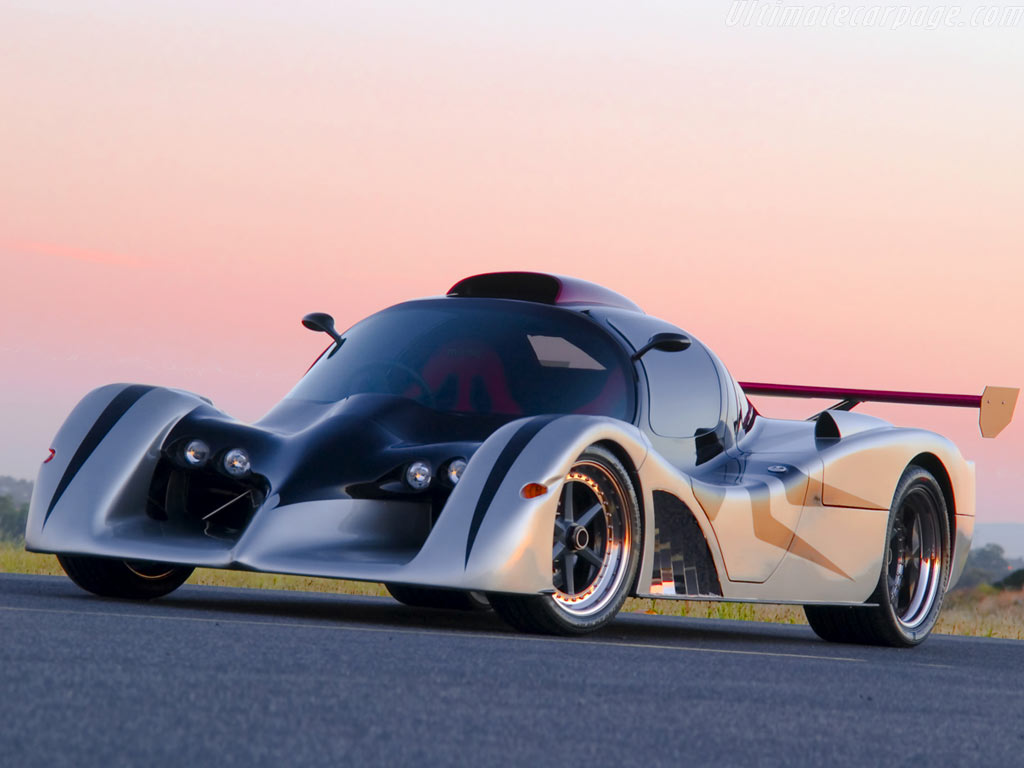

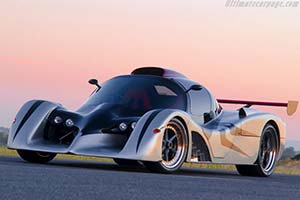

Carbontech Redback Spyder

Carbontech Redback Spyder Carbontech Redback Spyder Carbontech Redback Spyder Carbontech Redback Spyder Carbontech Redback Spyder Carbontech Redback Spyder
Click here to save all images    Image credits: Carbontech



Click here to download printer friendly version Although a completed car had been shown to potential customers for a few months, the Carbontech Redback Speyder made its official debut at the 2006 Melbourne Motorshow. Ran by Nick Tomkinson, the Australian company's first venture into the automotive industry was the construction of Lamborghini Countach replicas. They clearly felt the Countach was not extreme enough and set out to design a very spartan supercar.

Similar in proportion to the British Stealth B6 or Ultima GTR, the Redback Spyder features some unique design cues. In the initial drawings the car did not feature a full windscreen even though the rear bulkhead was high enough to support a roof structure. A windscreen was added in the development process, but the end product is still far from conventional. Mounted above the two radiator intakes, the small round headlights are the most striking design element.

Of course for a car of this type, the performance figures are what counts;with a curb weight of around 900 kg and a 450 bhp supercharged version of GM's popular LS1 V8 performance should be exhilarating. Tomkinson initially planned to install a Turbocharged Lexus V8, but the complicated engine is shelved for the time being. The low weight is achieved by using vast amounts of exotic materials like carbon fibre and kevlar. The fully adjustable suspension will enable owners to completely tailor the Redback Spyder to their tastes.

For now the Carbontech Redback Spyder is not road legal, but there are plans to apply for compliance in the future. There is a particularly big interest in the car from the United States and the first car has already been sold to North America. The striking road racer can be yours for a cool $250,000 AUD or $190,000 USD.

Article by Wouter Melissen, last updated on 02 / 13 / 2006

Add your comments on the Carbontech Redback Spyder



General specifications
Country of origin Australia
Numbers built N/A
Introduced 2006
Introduced at 2006 Melbourne Motorshow

Engine
Configuration Chevrolet LS1 90º V 8
Location Mid, longitudinally mounted
Displacement 5.665 liter / 345.7 cu in
Bore / Stroke 99.0 mm (3.9 in) / 92.0 mm (3.6 in)
Valvetrain 2 valves / cylinder, OHV
Fuel feed Fuel Injection
Aspiration Supercharger

Drivetrain
Chassis/body carbon fibre and kevlar body steel spaceframe
Suspension (fr/r) double wishbones, coil springs over fully adjustable shock absorbers, anti-roll bar
Steering rack-and-pinion
Brakes ventilated and slotted discs, all-round
Gearbox Getrag 6 speed Manual
Drive Rear wheel drive

Dimensions
Weight 907 kilo / 1999.6 lbs
Length / Width / Height 4210 mm (165.7 in) / 1980 mm (78 in) / 1165 mm (45.9 in)
Wheelbase / Track (fr/r) 2600 mm (102.4 in) / 1600 mm (63 in) / 1700 mm (66.9 in)

Performance figures
Power 450 bhp / 336 KW
Torque 550 Nm / 406 ft lbs
BHP/Liter 79 bhp / liter
Power to weight 0.5 bhp / kg
