  Creation CA06/H


  Article Image gallery (44) Specifications User Comments (1)

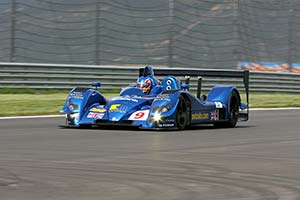

Click here to open the Creation CA06/H gallery
Country of origin:Great Britain
Produced in:2006
Numbers built:2
Designed by:Reynard / Creation / KWM
Author:Wouter Melissen
Last updated:April 18, 2006
Download: All images
Page 1 of 1
Click here to download printer friendly versionDesigned as a replacement for the disappointing 2KQ chassis, the Reynard 02S was much more a revolution than an evolution. Unfortunately the 02S proved to be too late to save the British manufacturer from its February 2002 bankruptcy. Some of the assets, including the designs and rights of the 02S were acquired by a company called International Racing Management (IRM). They completed the first chassis and badged it YGK, after the Japanese group they were commisioned by to do so. YGK pulled out and the single chassis was sold to Danish driver John Nielsen's RN Motorsport team.

Before continuing the competition history of the last Reynard, let's first take a look at some of the technical aspects. Reynard focussed on designing a car that would theoretically both suit the LMP 900 (900 kg minimum, wide tires and large engine) and LMP 675 (675 kg minimum, slimmer tires, smaller engine) classes. The most striking exterior feature was the very low waistline between the front and rear wheelarches. Under the lightweight body a traditional carbon fibre monocoque chassis is found, suspended by double wishbones all around.

The John Nielsen ex-YGK Reynard was now known as the DBA, named after his sponsor, Den Bla Avis, and made its debut at the end of the 2003 season. Running under the LMP 675 class regulations, the DBA was powered by a 3.4 litre V8 and weighed in at just over 760 kg. Its debut lasted for just 133 laps, when a mechanical failure put the new car out of the race. The DBA's performance was satisfying and convinced Nielsen to enter it for the 2003 24 Hours of Le Mans race. Some modifcations were carried through and the car was renamed once again and entered as the DBA4 03S.

In addition to the Le Mans race, RN Motorsport entered their DBA4 03S in a number of the FIA Sports Car Championship races. In the opening round at Estoril, John Nielsen and his team-mate Hayanari Shimoda finished second behind the winning Courage C60. Success came in the fourth round at Oschersleben in which Shimoda and his new team-mate Andy Wallace beat the championhsip winning Dome S101. At Le Mans 2003, the RN Motorsport DBA4 03S achieved second in class but was also a lowly 23rd overall.

New life was pumped into the old Reynard once more when engineering company Zytek picked up the manufacturing rights of the chassis. At the end of 2003, a second chassis was constructed and extensively tested by Andy Wallace and David Brabham. With no connection to Den Bla Avis, the new car was simply called 'Zytek' at its debut at the 24 Hours of Le Mans test day in April 2004. Livered in all black the V8 engined Zytek looked almost identical to the DBA4 03S used in the 2003 season.

Together with the new Zytek(s), the old DBA4 chassis put up a real challenge in 2004, frequently outpacing the competition. John Nielsen had sold the car to Creation Autosportif, who had previously run two Listers in the FIA GT championship. Two pole positions were scored in the LMES (Le Mans Endurance Series) and one in the North American ALMS. Bad luck prevented the promising pace being turned into a victory, but the team did manage to finish on the podium in the European Season finale at the Spa Francorchamps track.

For 2005 the Zytek V8 is replaced by a similar Judd engine, which should bring more consistency to the performance of the DBA4 chassis. Ironically John Nielsen is back, driving one of the new Zytek 04ss. Independently from Zytek, the Creation team developed a new aero package over the winter. In its this guise the DBA4 03S Judd made its debut at the 2005 Le Mans test day, where it is pictured. Throughout the season the Creation were on pace with the competition, but small problems got in the way of claiming the elusive first victory.

From 2006 onwards the LMP675/900 cars were no longer eligible to race at Le Mans or in the affiliated Le Mans Series. This left Creation with the option of buying an all new car or adopt the old car to the LMP1 aero regulations. In this 'hybrid' form the car could be used for one more season. Together with former Reynard employee Kieron Salter, the team took up the arduous task to convert the seasoned racer to the hybrid specification. They were the first to do so with a LMP675 chassis as a basis.

Not only the body panels were updated to comply with the regulations, but also various technical modifcations were carried through. The most obvious was the installation of Judd's lates five litre V10 engine. In the 2006 'S2' specification, the powerful engine is even lighter. The engine is mated to a Ricardo gearbox that is operated by panels behind the steering wheel. The weather in Britain was dreadful when the car was completed, so the team had to wait until the Paul Ricard to see if the changes had worked out; topping the charts after the two days was a clear indication.

After the extensive modifications the car was rechristened once more as the 'Creation CA06/H'. Less than a fortnight after the successful Paul Ricard test, the season officially opened with the Istanbul 1000 km race. The new Creation was in an intriguing fight with the Pescarolo C60 in every session of the weekend, until the gearbox gave way about 50 laps into the race. The team now travels to Spa with high hopes and most likely a second car based on one of the chassis built by Zytek and used by Team Jota in 2004 and 2005.
