  Reynard Inverter


  Article Image gallery (6) Specifications User Comments (2)

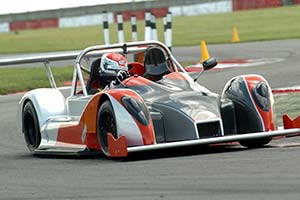

Click here to open the Reynard Inverter gallery
Country of origin:Great Britain
Introduced in:2009
Source:Company press release
Last updated:July 28, 2009
Download: All images
Page 1 of 1
Click here to download printer friendly versionA 2 seat sports car fully compliant with SVA regulations for low volume type approval and capable of being road registered. Designed to compete as a racing car in the 750 Motor Club Bike Sports Championship - this particular vehicle complies with Class C (standard Honda Fireblade engine up to 1000cc). Minimum weight with driver 475kg. The car weight including fluids but less driver is 400kg.

Track performance on Avon slicks will provide a 4G lateral cornering experience, until now unachievable outside the top echelons of high performance racing cars like F1. (8"X13" front and 10" X 13' rear wheels) Road performance will provide excellent acceleration with 360 bhp/tonne power to weight ratio with the smallest standard Honda Fireblade engine or 530 bhp/tonne with the Hayabusa 250 bhp engine. For road use the car is equipped with treaded road legal tyres. (7" X 16" front and 9" X 17" rear wheels)

Wind tunnel testing has proven that the car with driver can support twice it's own weight at 100 mph and four times its own weight at terminal velocity. The car will drive upside down on a ceiling at 100 mph, hence the name Inverter.

The frame is constructed from laser cut, CNC bent and TIG welded stainless steel tube. Production versions may be robotically welded with MIG. The tubular frame is reinforced with two aluminium honeycomb composite side panels which are riveted into position to enhance torsion capabilities. These panels will be further reinforced by the addition of an outer lamination of Tegris which provides enhanced side- intrusion protection.

The nosebox has been designed in aluminium honeycomb, with the added feature of frontal side protection. This type of composite side protection panel and front crash-box concepts have been tested by Cranfield University and demonstrated excellent energy dissipation properties.

The final drive is accomplished by composite tooth belt. This feature requires no chain lubrication and eliminates the dispersion of grease and oil debris. Reverse gear is applied by 12v electric motor and applied via a simple sprag clutch. Differential is Quaife grease filled unit with production CV joints and driveshafts. Paddle shift will augment the six speed sequential gearbox. This will enable flat-upshifting and auto-blip downshifting.

The uprights are all non-handed and water-jet cut from standard width aluminium plate. Minimal machining is required. All suspension wishbones are similarly non-handed. The front and rear body panels are designed so they can hinge to facilitate easy access. They can be moulded in GRP or carbon fibre to customer choice.

The car was realised during the first week of January 2009, nearly a year after work was commenced on the project. It has been an important goal to keep the 'sunk costs' to a minimum. Many car "projects" have unrealistic expectations with over optimistic manufacturing costs and sales forecasts.

The production of the Reynard Inverter will provide the car for the members of the 750 Motor Club, motor sport and Track Day participants who want an extraordinary road car experience. The advanced and unique aerodynamic characteristics will allow the car to achieve unbelievable cornering abilities. On track tyres the driver will be able to experience up to 4G lateral acceleration - this is on the same level as F1.

The car is projected to attain 150 mph, and at that speed it produces down force levels that are four times its own weight. This would theoretically allow the car to drive upside down at 100 mph, hence the Inverter model name.

The engine presently installed is the Honda Fireblade 998 cc unit that will rev to 14,000 rpm and produces 175 bhp. Other motorcycle engines are available, including the Suzuki Hayabusa. Car engine variants are also possible with some re-design of the rear frame.
