  Amilcar C4

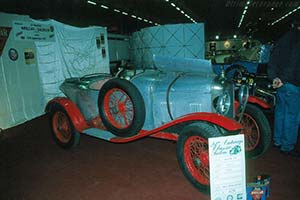

Amilcar C4
Click here to save all images    Image credits: Wouter Melissen

Click here to download printer friendly version Built between 1922 to 1928, the C4 was the 'family-model' of the Amilcar line-up. It was powered by a tiny 4 cylinder engine with a displacement of just over 1 litre. For its size this engine pumped out a reasonable 22 hp.

Article by Wouter Melissen, last updated before 12 / 01 / 2004

Add your comments on the Amilcar C4



General specifications
Country of origin France
Numbers built N/A
Produced from 1922 - 1928

Engine
Configuration Straight 4
Location Front, longitudinally mounted
Displacement 1.004 liter / 61.3 cu in
Bore / Stroke 58.0 mm (2.3 in) / 95.0 mm (3.7 in)
Compression 5.0:1
Valvetrain 2 valves / cylinder, OHV
Fuel feed Solex 26 MHG Carburettor
Aspiration Naturally Aspirated
Power 22 bhp / 16 KW @ 2800 rpm
BHP/Liter 22 bhp / liter

Drivetrain
Chassis body on ladder frame
Suspension (fr/r) rigid axle, semi-elliptic leaf springs, friction dampers
Steering worm-and-roller
Brakes drums, all-round
Gearbox 3 speed Manual
Drive Rear wheel drive

Dimensions
Weight 500 kilo / 1102.3 lbs
Wheelbase / Track (fr/r) 2450 mm (96.5 in) / 1090 mm (42.9 in) / 1090 mm (42.9 in)

Performance figures
Power to weight 0.04 bhp / kg
Top Speed 90 km/h (56 mph)
