  Ford F150 SVT Lightning


  Article Image gallery (4) Specifications User Comments (2)

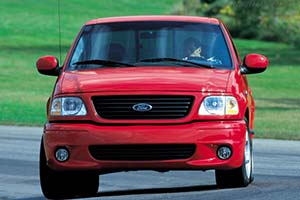

Click here to open the Ford F150 SVT Lightning gallery
Country of origin:United States
Produced in:2001
Source:Company press release
Last updated:Before December 1st, 2004
Download: All images

Engine
Configuration Triton 90º V8
Location Front, longitudinally mounted
Construction iron block, aluminium / alloy head
Displacement 5,409 cc / 330.1 cu in
Bore / Stroke 90.0 mm (3.5 in) / 105.6 mm (4.2 in)
Valvetrain 2 valves / cylinder, SOHC
Fuel feed Sequential electronic Fuel Injection
Aspiration Eaton Corporation Generation IV Roots-Type Supercharger with water-to-air intercooler
Power 380 bhp / 283 KW @ 4,750 rpm
Torque 610 Nm / 450 ft lbs @ 3,250 rpm
BHP/Liter 70 bhp / liter

Drivetrain
Front suspension Short- and long-arm type, coil springs, tubular gas- charged Bilstein shock absorbers, 31mm solid stabilizer bar
Rear suspension Solid axle, staggered gas-charged Bilstein shock absorbers, five-leaf springs, 23mm solid stabilizer bar
Steering recirculating ball, power assist
Brakes ventilated discs, all-round
Gearbox 4R100 4 speed Automatic
Drive Rear wheel drive

Dimensions
Weight 2,120 kilo / 4,674 lbs
Length / Width / Height 5,283 mm (208 in) / 2,009 mm (79.1 in) / 1,801 mm (70.9 in)
Wheelbase / Track (fr/r) 3,043 mm (119.8 in) / 1,661 mm (65.4 in) / 1,661 mm (65.4 in)

Performance figures
Power to weight 0.18 bhp / kg
