  Pontiac Firebird Trans Am


  Article Specifications

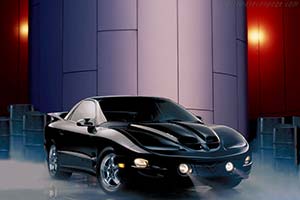

Click here to open the Pontiac Firebird Trans Am gallery
Country of origin:United States
Produced in:2002
Source:Company press release
Last updated:Before December 1st, 2004
Download: All images

Engine
Configuration LS1 90º V8
Location Front, longitudinally mounted
Construction aluminium block and head
Displacement 5,665 cc / 345.7 cu in
Bore / Stroke 99.0 mm (3.9 in) / 92.0 mm (3.6 in)
Valvetrain 2 valves / cylinder, OHV
Fuel feed Sequential port Fuel Injection
Aspiration Naturally Aspirated
Power 310 bhp / 231 KW @ 5,200 rpm
Torque 461 Nm / 340 ft lbs @ 4,000 rpm
BHP/Liter 55 bhp / liter

Drivetrain
Front suspension SLA/coil over mono-tube gas-charged shocks, tubular stabilizer bar with links
Rear suspension Salisbury axle with torque arm, trailing arm, track bar, coil springs
Steering rack-and-pinion, power assisted
Brakes ventilated discs, all-round, ABS
Gearbox 6 speed Manual
Drive Rear wheel drive

Dimensions
Weight 1,585 kilo / 3,494 lbs
Length / Width / Height 4,920 mm (193.7 in) / 1,890 mm (74.4 in) / 1,316 mm (51.8 in)
Wheelbase / Track (fr/r) 2,568 mm (101.1 in) / 1,542 mm (60.7 in) / 1,539 mm (60.6 in)

Performance figures
Power to weight 0.2 bhp / kg
