  Hummer H2 SUV


  Article Image gallery (6) Specifications User Comments (39)

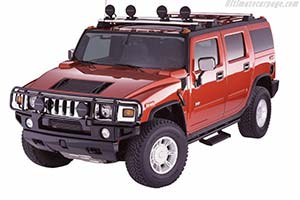

Click here to open the Hummer H2 SUV gallery
Country of origin:United States
Introduced in:2002
Introduced at:2002 LA Auto Show
Source:Company press release
Last updated:Before December 1st, 2004
Download: All images

Engine
Configuration Vortec 6000 90º V8
Location Front, longitudinally mounted
Construction iron block, aluminium head
Displacement 5,967 cc / 364.1 cu in
Bore / Stroke 101.6 mm (4 in) / 92.0 mm (3.6 in)
Valvetrain 2 valves / cylinder, OHV
Fuel feed Sequential Fuel Injection
Aspiration Naturally Aspirated
Power 325 bhp / 242 KW @ 5,200 rpm
Torque 522 Nm / 385 ft lbs @ 3,600 rpm
BHP/Liter 54 bhp / liter

Drivetrain
Chassis body-on-frame construction
Front suspension Independent with torsion bars, 46mm mono-tube gas shocks, 35.9mm front stabilizer bar
Rear suspension 5-link variable-rate coil spring, opt. self-levelling air spring (w/RPO ZM6), 46mm mono-tube shocks, 30mm stabilizer bar
Steering recirculating ball, variable ratio, integral power
Brakes discs all-round, ABS
Gearbox 4L65-E 4 speed Automatic
Drive All wheel drive

Dimensions
Weight 2,909 kilo / 6,413 lbs
Length / Width / Height 4,820 mm (189.8 in) / 2,063 mm (81.2 in) / 1,977 mm (77.8 in)
Wheelbase / Track (fr/r) 3,118 mm (122.8 in) / 1,763 mm (69.4 in) / 1,763 mm (69.4 in)

Performance figures
Power to weight 0.11 bhp / kg
