  Horch 853 A Sport Cabriolet


  Article Image gallery (4) Specifications User Comments (1)

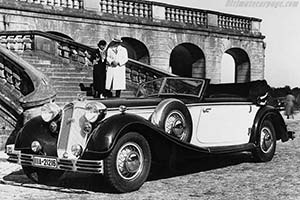

Click here to open the Horch 853 A Sport Cabriolet gallery
Country of origin:Germany
Produced from:1937 - 1940
Numbers built:404 (all bodies)
Author:Wouter Melissen
Last updated:Before December 1st, 2004
Download: All images

Engine
Configuration Type T850 Straight 8
Location Front, longitudinally mounted
Displacement 4,944 cc / 301.7 cu in
Bore / Stroke 87.0 mm (3.4 in) / 104.0 mm (4.1 in)
Compression 6.1:1
Valvetrain 2 valves / cylinder, SOHC
Fuel feed Solex 35 JFF Carburettor
Aspiration Naturally Aspirated
Power 120 bhp / 90 KW @ 3,600 rpm
BHP/Liter 24 bhp / liter

Drivetrain
Chassis body on steel frame
Front suspension independent, semi-elliptic springs, hydraulic shock absorbers
Rear suspension De DeDion axle, semi-elliptic springs, hydraulic shock absorbers
Steering worm-and-nut
Brakes hydraulic drums, all-round
Gearbox ZF GN 35 4 speed Manual
Drive Rear wheel drive

Dimensions
Weight 2,630 kilo / 5,798 lbs
Length / Width / Height 5,300 mm (208.7 in) / 1,830 mm (72 in) / 1,580 mm (62.2 in)
Wheelbase / Track (fr/r) 3,450 mm (135.8 in) / 1,510 mm (59.4 in) / 1,516 mm (59.7 in)

Performance figures
Power to weight 0.05 bhp / kg
Top Speed 135 km/h (84 mph)
