  Maybach Zeppelin DS 8


  Article Image gallery (7) Specifications

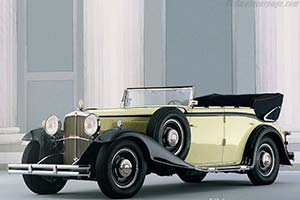

Click here to open the Maybach Zeppelin DS 8 gallery
Country of origin:Germany
Produced from:1931 - 1940
Numbers built:215
Designed by:Spohn
Source:Company press release
Last updated:Before December 1st, 2004
Download: All images

Engine
Configuration 60º V12
Location Front, longitudinally mounted
Displacement 7,922 cc / 483.4 cu in
Bore / Stroke 92.0 mm (3.6 in) / 100.0 mm (3.9 in)
Compression 6.3:1
Valvetrain 2 valves / cylinder, OHV
Fuel feed 2 Solex MMOVS 35 Carburettors
Aspiration Naturally Aspirated
Power 200 bhp / 149 KW @ 3,200 rpm
BHP/Liter 25 bhp / liter

Drivetrain
Chassis body on steel frame
Suspension (fr/r) rigid axle, semi-elliptic springs, shock absorbers
Steering worm-and-nut
Brakes servo assisted, drums, all-round
Gearbox DSG 80 5 speed Manual
Drive Rear wheel drive

Dimensions
Weight 2,800 kilo / 6,173 lbs
Length / Width / Height 5,520 mm (217.3 in) / 1,820 mm (71.7 in) / 1,900 mm (74.8 in)
Wheelbase / Track (fr/r) 3,735 mm (147 in) / 1,520 mm (59.8 in) / 1,520 mm (59.8 in)

Performance figures
Power to weight 0.07 bhp / kg
Top Speed 170 km/h (106 mph)
