  Berliet 11 CV Type Dauphine


  Article Specifications

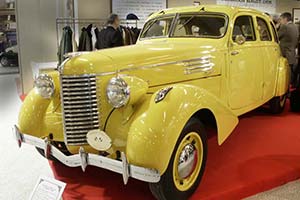

Click here to open the Berliet 11 CV Type Dauphine gallery
Country of origin:France
Produced in:1939
Author:Wouter Melissen
Last updated:Before December 1st, 2004
Download: All images

Engine
Configuration MKM 3 Straight 4
Location Front, longitudinally mounted
Displacement 1,990 cc / 121.4 cu in
Bore / Stroke 80.0 mm (3.1 in) / 100.0 mm (3.9 in)
Compression 5.6:1
Valvetrain 2 valves / cylinder, OHV
Fuel feed Zenith Stromberg EX 22 Carburettor
Aspiration Naturally Aspirated
Power 50 bhp / 37 KW @ 4,000 rpm
BHP/Liter 25 bhp / liter

Drivetrain
Chassis body on tubular chassis
Front suspension independent, hydraulic dampers
Rear suspension rigid axle, semi-elliptic springs, hydraulic dampers
Brakes drums, all-round
Gearbox 4 speed Manual
Drive Rear wheel drive

Dimensions
Weight 1,250 kilo / 2,756 lbs
Length / Width / Height 4,900 mm (192.9 in) / 1,650 mm (65 in) / N/A
Wheelbase / Track (fr/r) 3,200 mm (126 in) / 1,400 mm (55.1 in) / 1,400 mm (55.1 in)

Performance figures
Power to weight 0.04 bhp / kg
Top Speed 115 km/h (71 mph)
