  Datsun 240 Z


  Article Image gallery (5) Specifications User Comments (2)

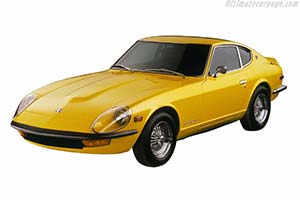

Click here to open the Datsun 240 Z gallery
Country of origin:Japan
Produced from:1969 - 1974
Numbers built:156078
Designed by:Graf Albrecht Goertz
Source:Company press release
Last updated:Before December 1st, 2004
Download: All images

Engine
Configuration Straight 6
Location Front, longitudinally mounted
Construction cast iron block, alloy head
Displacement 2,393 cc / 146 cu in
Bore / Stroke 83.0 mm (3.3 in) / 73.7 mm (2.9 in)
Compression 8.8:1
Valvetrain 2 valves / cylinder, SOHC
Fuel feed 2 SU Carburettors
Aspiration Naturally Aspirated
Power 161 bhp / 120 KW @ 5,600 rpm
Torque 198 Nm / 146 ft lbs @ 4,400 rpm
BHP/Liter 67 bhp / liter

Drivetrain
Chassis all steel, monocoque
Front suspension McPherson struts, track control arms, anti-roll bar
Rear suspension independent, McPherson struts, lower wishbones
Steering rack-and-pinion
Front Brakes Girling discs
Rear brakes Girling drums
Gearbox 5 speed Manual
Drive Rear wheel drive

Dimensions
Weight 1,044 kilo / 2,302 lbs
Length / Width / Height 4,140 mm (163 in) / 1,626 mm (64 in) / 1,283 mm (50.5 in)
Wheelbase / Track (fr/r) 2,305 mm (90.7 in) / 1,359 mm (53.5 in) / 1,346 mm (53 in)

Performance figures
Power to weight 0.15 bhp / kg
Top Speed 201 km/h (125 mph)
0-60 mph 8.2 s
