  Jaguar E-Type S2 Coupe


  Article Image gallery (5) Specifications

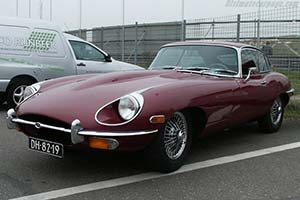

Click here to open the Jaguar E-Type S2 Coupe gallery
Country of origin:Great Britain
Produced from:1968 - 1970
Numbers built:4855
Author:Wouter Melissen
Last updated:Before December 1st, 2004
Download: All images

Engine
Configuration XK Straight 6
Location Front, longitudinally mounted
Construction cast iron block, aluminium head
Displacement 4,235 cc / 258.4 cu in
Bore / Stroke 92.0 mm (3.6 in) / 106.0 mm (4.2 in)
Compression 8.0:1
Valvetrain 2 valves / cylinder, DOHC
Fuel feed 3 SU Carburettors
Aspiration Naturally Aspirated
Power 265 bhp / 198 KW @ 5,400 rpm
Torque 349 Nm / 257 ft lbs @ 4,000 rpm
BHP/Liter 63 bhp / liter

Drivetrain
Chassis steel monocoque
Front suspension wishbones, torsion bars, telescopic dampers, anti-roll bar
Rear suspension lower wishbones, upper driveshaft links, radius arms, coil springs over dampers, anti-roll bar
Steering rack-and-pinion
Brakes servo-assisted discs all-round
Gearbox 4 speed Manual
Drive Rear wheel drive

Dimensions
Weight 1,407 kilo / 3,102 lbs
Length / Width / Height 4,453 mm (175.3 in) / 1,656 mm (65.2 in) / 1,222 mm (48.1 in)
Wheelbase / Track (fr/r) 2,438 mm (96 in) / 1,270 mm (50 in) / 1,270 mm (50 in)

Performance figures
Power to weight 0.19 bhp / kg
Top Speed 242 km/h (150 mph)
0-60 mph 7.1 s
