  Renault Type AG


  Article Image gallery (3) Specifications

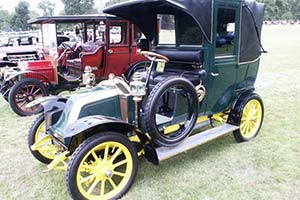

Click here to open the Renault Type AG gallery
Country of origin:France
Produced in:1910
Author:Wouter Melissen
Last updated:Before December 1st, 2004
Download: All images

Engine
Configuration Straight 2
Location Front, longitudinally mounted
Displacement 1,066 cc / 65.1 cu in
Bore / Stroke 75.0 mm (3 in) / 120.0 mm (4.7 in)
Valvetrain 2 valves / cylinder, OHV
Fuel feed Carburettor
Aspiration Naturally Aspirated
Power 12 bhp / 9 KW @ 1,800 rpm
BHP/Liter 11 bhp / liter

Drivetrain
Chassis body on ladder frame
Suspension (fr/r) rigid axle, semi-elliptic leaf springs
Steering rack-and-pinion
Brakes drums, rear
Gearbox 3 speed Manual
Drive Rear wheel drive

Dimensions
Weight 1,050 kilo / 2,315 lbs
Length / Width / Height 3,700 mm (145.7 in) / 1,650 mm (65 in) / N/A

Performance figures
Power to weight 0.01 bhp / kg
Top Speed 50 km/h (31 mph)
