  TVR Vixen S1


  Article Image gallery (4) Specifications User Comments (2)

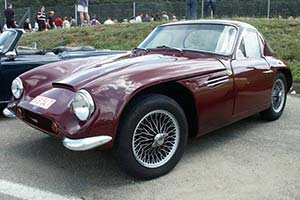

Click here to open the TVR Vixen S1 gallery
Country of origin:Great Britain
Produced from:1967 - 1968
Numbers built:117 (both engines)
Author:Wouter Melissen
Last updated:Before December 1st, 2004
Download: All images

Engine
Configuration Ford Straight 4
Location Front, longitudinally mounted
Displacement 1,599 cc / 97.6 cu in
Bore / Stroke 81.0 mm (3.2 in) / 77.6 mm (3.1 in)
Valvetrain 2 valves / cylinder, OHV
Fuel feed Weber Carburettors
Aspiration Naturally Aspirated
Power 88 bhp / 66 KW @ 5,400 rpm
Torque 130 Nm / 96 ft lbs @ 3,600 rpm
BHP/Liter 55 bhp / liter

Drivetrain
Chassis fibreglass body on tubular chassis
Front suspension wishbones, coil springs, anti-roll bar
Rear suspension wishbones, coil springs
Steering rack-and-pinion
Brakes discs front, drums rear
Gearbox 4 speed Manual
Drive Rear wheel drive

Dimensions
Weight 738 kilo / 1,627 lbs

Performance figures
Power to weight 0.12 bhp / kg
Top Speed 175 km/h (109 mph)
