  Bugatti Type 13 Torpedo


  Article Image gallery (7) Specifications

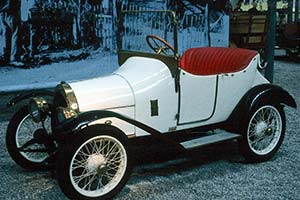

Click here to open the Bugatti Type 13 Torpedo gallery
Country of origin:France
Produced from:1913 - 1920
Numbers built:435 (all models)
Introduced at:1910 Paris Motor Show
Author:Wouter Melissen
Last updated:Before December 1st, 2004
Download: All images

Engine
Configuration Straight 4
Location Front, longitudinally mounted
Displacement 1,327 cc / 81 cu in
Bore / Stroke 64.0 mm (2.5 in) / 100.0 mm (3.9 in)
Valvetrain 2 valves / cylinder, OHV
Fuel feed Zenith Carburettor
Aspiration Naturally Aspirated
Power 20 bhp / 15 KW @ 3,000 rpm
BHP/Liter 15 bhp / liter

Drivetrain
Chassis body on ladder frame
Front suspension live axle, semi-elliptic leaf springs
Rear suspension live axle, reversed quarter elliptic leaf springs
Brakes drums, rear
Gearbox 4 speed Manual
Drive Rear wheel drive

Dimensions
Weight 300 kilo / 661 lbs
Wheelbase / Track (fr/r) 2,000 mm (78.7 in) / 1,150 mm (45.3 in) / 1,150 mm (45.3 in)

Performance figures
Power to weight 0.07 bhp / kg
Top Speed 100 km/h (62 mph)
