  Mercedes-Benz 280 SL Pagoda


  Article Image gallery (9) Specifications

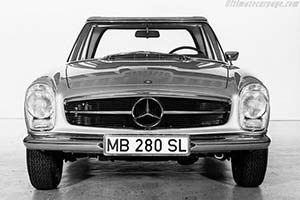

Click here to open the Mercedes-Benz 280 SL Pagoda gallery
Country of origin:Germany
Produced from:1968 - 1971
Numbers built:23885
Internal name:W113
Source:Company press release
Last updated:Before December 1st, 2004
Download: All images

Engine
Configuration M 130 Straight 6
Location Front, longitudinally mounted
Displacement 2,778 cc / 169.5 cu in
Bore / Stroke 86.5 mm (3.4 in) / 78.8 mm (3.1 in)
Compression 9.5:1
Valvetrain 2 valves / cylinder, SOHC
Fuel feed Bosch Fuel Injection
Aspiration Naturally Aspirated
Power 170 bhp / 127 KW @ 5,750 rpm
Torque 240 Nm / 177 ft lbs @ 4,500 rpm
BHP/Liter 61 bhp / liter

Drivetrain
Chassis unitary steel
Front suspension double wishbones, coil springs, telescopic shock absorbers, torsion bar stabilizer
Rear suspension single-joint swing axle with compensating spring, coil springs, telescopic shock absorbers
Steering recirculating ball, power assisted
Brakes discs front, drums rear
Gearbox 4 speed Manual
Drive Rear wheel drive

Dimensions
Length / Width / Height 4,285 mm (168.7 in) / 1,760 mm (69.3 in) / 1,320 mm (52 in)
Wheelbase / Track (fr/r) 2,400 mm (94.5 in) / 1,484 mm (58.4 in) / 1,485 mm (58.5 in)

Performance figures
Top Speed 200 km/h (124 mph)
0-60 mph 8.8 s
