  DBA4 03S Zytek

  Article Image gallery (6) Specifications

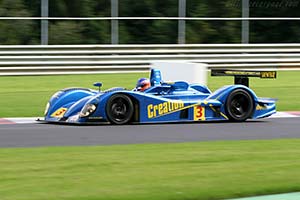

Click here to open the DBA4 03S Zytek gallery
Country of origin:Great Britain
Produced from:2002 - 2003
Numbers built:1
Designed by:Reynard
Author:Wouter Melissen
Last updated:May 02, 2005
Download: All images

Engine
Configuration Zytek ZG348 90º V8
Location Mid, longitudinally mounted
Construction aluminium block and head
Displacement 3,396 cc / 207.2 cu in
Valvetrain 4 valves / cylinder, DOHC
Fuel feed Fuel Injection
Aspiration Naturally Aspirated
Power 540 bhp / 403 kW @ 9,500 rpm
Torque 441 Nm / 325 ft lbs @ 8,000 rpm
BHP/Liter 159 bhp / liter

Drivetrain
Chassis carbon fibre and aluminium honeycomb monocoque
Front suspension double wishbones, pull-rod operated coil springs over shock absorbers
Rear suspension double wishbones, push-rod operated coil springs over shock absorbers
Steering rack-and-pinion
Brakes ventilated carbon discs, all-round
Gearbox Ricardo 6 speed Sequential
Drive Rear wheel drive

Dimensions
Weight 760 kilo / 1,676 lbs
Length / Width / Height 4,645 mm (182.9 in) / 2,000 mm (78.7 in) / 1,020 mm (40.2 in)
Wheelbase / Track (fr/r) 2,815 mm (110.8 in) / 1,678 mm (66.1 in) / 1,678 mm (66.1 in)

Performance figures
Power to weight 0.71 bhp / kg
