  Mitsubishi Lancer WRC05


  Article Image gallery (12) Specifications

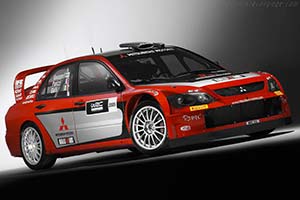

Click here to open the Mitsubishi Lancer WRC05 gallery
Country of origin:Japan
Produced in:2005
Source:Company press release
Last updated:June 06, 2005
Download: All images

Engine
Configuration 4G63 Straight 4
Location Front, transversely mounted
Construction cast-iron block, aluminium head
Displacement 1,996 cc / 121.8 cu in
Bore / Stroke 85.5 mm (3.4 in) / 86.9 mm (3.4 in)
Valvetrain 4 valves / cylinder, DOHC
Fuel feed Fuel Injection
Aspiration Turbo
Power 300 bhp / 224 KW @ 5,500 rpm
Torque 540 Nm / 398 ft lbs @ 3,500 rpm
BHP/Liter 150 bhp / liter

Drivetrain
Chassis unitary steel
Suspension (fr/r) McPherson struts, coil springs, anti-roll bar
Steering rack-and-pinion, power assisted
Brakes ventilated discs, all-round
Gearbox Ricardo 5 speed Sequential
Drive All wheel drive

Dimensions
Weight 1,230 kilo / 2,712 lbs
Length / Width / Height 4,360 mm (171.7 in) / 1,800 mm (70.9 in) / N/A
Wheelbase / Track (fr/r) 2,600 mm (102.4 in) / 1,550 mm (61 in) / 1,550 mm (61 in)

Performance figures
Power to weight 0.24 bhp / kg
Top Speed 220 km/h (137 mph)
