  Cadillac Cyclone Concept


  Article Image gallery (6) Specifications User Comments (1)

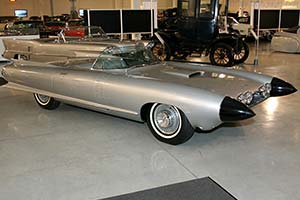

Click here to open the Cadillac Cyclone Concept gallery
Country of origin:United States
Produced in:1959
Numbers built:one-off
Author:Wouter Melissen
Last updated:June 27, 2005
Download: All images

Engine
Configuration 90º V8
Location Front, longitudinally mounted
Construction cast-iron block and head
Displacement 6,382 cc / 389.5 cu in
Bore / Stroke 101.6 mm (4 in) / 98.4 mm (3.9 in)
Valvetrain 2 valves / cylinder, OHV
Fuel feed Weber Carburettor
Aspiration Naturally Aspirated
Power 350 bhp / 261 KW @ 4,800 rpm
Torque 588 Nm / 434 ft lbs @ 3,100 rpm
BHP/Liter 55 bhp / liter

Drivetrain
Chassis unitary steel
Front suspension air suspension
Rear suspension swing axles, trailing arms
Brakes servo assisted drums, all-round
Gearbox 3 speed Automatic
Drive Rear wheel drive

Dimensions
Weight 2,100 kilo / 4,630 lbs
Length / Width / Height 5,001 mm (196.9 in) / N/A / 1,118 mm (44 in)
Wheelbase / Track (fr/r) 2,642 mm (104 in) / 1,499 mm (59 in) / 1,499 mm (59 in)

Performance figures
Power to weight 0.17 bhp / kg
