  Jeep Wrangler Unlimited


  Article Image gallery (6) Specifications

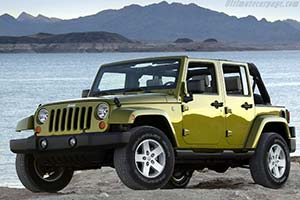

Click here to open the Jeep Wrangler Unlimited gallery
Country of origin:United States
Introduced in:2006
Introduced at:2006 New York Auto Show
Source:Company press release
Last updated:April 18, 2006
Download: All images

Engine
Configuration 60º V6
Location Front, longitudinally mounted
Construction cast-iron block, aluminium alloy head
Displacement 3,778 cc / 230.5 cu in
Bore / Stroke 96.0 mm (3.8 in) / 87.0 mm (3.4 in)
Compression 9.6:1
Valvetrain 2 valves / cylinder, OHV
Fuel feed Fuel Injection
Aspiration Naturally Aspirated
Power 205 bhp / 153 KW @ 5,200 rpm
Torque 325 Nm / 240 ft lbs @ 4,000 rpm
BHP/Liter 54 bhp / liter

Drivetrain
Chassis steel body on ladder frame
Front suspension live axle, leading arms, track bar, coil springs, stabilizer bar, low-pressure gas-charged shock absorbers
Rear suspension live axle, trailing arms, track bar, coil springs, stabilizer bar, low-pressure gas-charged shock absorbers
Steering recirculating ball, power assisted
Brakes discs, all-round, ABS
Gearbox NSG 370 6 speed Manual
Drive All wheel drive

Dimensions
Weight 1,848 kilo / 4,074 lbs
Length / Width / Height 4,404 mm (173.4 in) / 1,877 mm (73.9 in) / 1,801 mm (70.9 in)
Wheelbase / Track (fr/r) 2,946 mm (116 in) / 1,572 mm (61.9 in) / 1,572 mm (61.9 in)

Performance figures
Power to weight 0.11 bhp / kg
