  Dome S101-Hb Judd


  Article Image gallery (16) Specifications

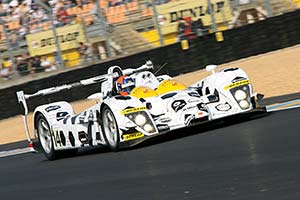

Click here to open the Dome S101-Hb Judd gallery
Country of origin:Japan
Produced in:2006
Author:Wouter Melissen
Last updated:June 14, 2006
Download: All images

Engine
Configuration Judd GV5 S2 72º V10
Location Mid, longitudinally mounted
Weight 138 kilo / 304.2 lbs
Construction aluminium block and head
Displacement 4,997 cc / 304.9 cu in
Valvetrain 4 valves / cylinder, DOHC
Fuel feed Fuel Injection
Aspiration Naturally Aspirated
Power 640 bhp / 477 KW @ 7,800 rpm
Torque 615 Nm / 454 ft lbs @ 6,500 rpm
BHP/Liter 128 bhp / liter

Drivetrain
Chassis carbon fibre / aluminium honeycomb monocoque
Suspension (fr/r) double wishbones, push-rod actuated coil springs over dampers
Steering rack-and-pinion
Brakes ventilated carbon fibre discs, all-round
Gearbox Xtrac 6 speed Sequential
Drive Rear wheel drive

Dimensions
Weight 925 kilo / 2,039 lbs
Length / Width / Height 4,485 mm (176.6 in) / 1,995 mm (78.5 in) / 1,085 mm (42.7 in)
Wheelbase / Track (fr/r) 2,850 mm (112.2 in) / 1,640 mm (64.6 in) / 1,600 mm (63 in)

Performance figures
Power to weight 0.69 bhp / kg
