  Lancia ECV Group S Prototype


  Article Specifications

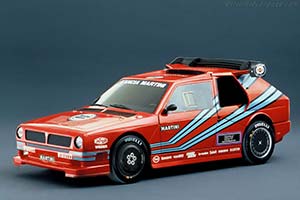

Click here to open the Lancia ECV Group S Prototype gallery
Country of origin:Italy
Produced in:1986
Numbers built:one-off
Author:Wouter Melissen
Last updated:November 20, 2006
Download: All images

Engine
Configuration Straight 4
Location Mid, longitudinally mounted
Construction aluminium alloy block and head
Displacement 1,759 cc / 107.3 cu in
Bore / Stroke 88.5 mm (3.5 in) / 71.5 mm (2.8 in)
Compression 7.5:1
Valvetrain 4 valves / cylinder, DOHC
Fuel feed Electronic Fuel Injection
Aspiration Twin KKK Turbos
Power 600 bhp / 448 KW @ 8,000 rpm
Torque 540 Nm / 398 ft lbs @ 5,000 rpm
BHP/Liter 341 bhp / liter

Drivetrain
Chassis carbon fibre honeycomb monocoque with carbon composite body panels
Front suspension double wishbones, coil springs over hydraulic shock absorbers, anti-roll bar
Rear suspension double wishbones, coil springs, twin hydraulic shock absorbers, anti-roll bar
Steering rack-and-pinion, power assisted
Brakes ventilated discs, all-round
Gearbox 5 speed Manual
Drive All wheel drive

Dimensions
Weight 930 kilo / 2,050 lbs
Length / Width / Height 4,003 mm (157.6 in) / 1,880 mm (74 in) / 1,500 mm (59.1 in)
Wheelbase / Track (fr/r) 2,440 mm (96.1 in) / 1,500 mm (59.1 in) / 1,520 mm (59.8 in)

Performance figures
Power to weight 0.65 bhp / kg
