  Toleman TG 184 Hart


  Article Image gallery (18) TG184-01 Specifications

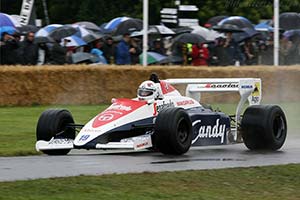

Click here to open the Toleman TG 184 Hart gallery
Country of origin:Great Britain
Produced in:1984
Designed by:Rory Byrne for Toleman
Predecessor:Toleman TG 183B Hart
Author:Wouter Melissen
Last updated:August 06, 2007
Download: All images

Engine
Configuration Hart 415T Straight 4
Location Mid, longitudinally mounted
Weight 140 kilo / 308.6 lbs
Construction aluminium block and head
Displacement 1,459 cc / 89 cu in
Bore / Stroke 88.0 mm (3.5 in) / 61.5 mm (2.4 in)
Compression 7.1:1
Valvetrain 4 valves / cylinder, DOHC
Camshaft Belt driven
Fuel feed Fuel Injection
Lubrication Dry sump
Aspiration Turbo
Power 650 bhp / 485 KW @ 10,500 rpm
BHP/Liter 446 bhp / liter

Drivetrain
Chassis carbon fibre monocoque with rear subframe
Front suspension double wishbones, pull-rod actuated coil springs over dampers
Rear suspension double wishbones, push-rod actuated coil springs over dampers
Steering rack-and-pinion
Brakes (fr/r) internally ventilated discs
Gearbox Hewland 5 speed Manual
Drive Rear wheel drive

Dimensions
Weight 540 kilo / 1,191 lbs
Wheelbase / Track (fr/r) 2,800 mm (110.2 in) / 1,765 mm (69.5 in) / 1,676 mm (66 in)
Fuel tank 220 Litre (58.1 Gallon US / 48.4 Gallon Imperial)
Tyres (fr/r) Michelin 25/63 - 13 / 40/66 x 13

Performance figures
Power to weight 1.2 bhp / kg
