  Iso Rivolta IR340 GT


  Article Image gallery (2) Specifications

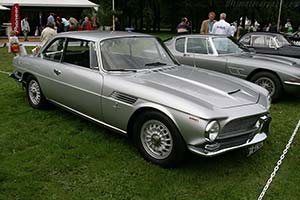

Click here to open the Iso  Rivolta IR340 GT gallery
Country of origin:Italy
Produced from:1963 - 1969
Numbers built:797 (all versions)
Designed by:Giorgietto Giugiaro for Bertone
Author:Pieter Melissen
Last updated:March 26, 2008
Download: All images

Engine
Configuration Chevrolet 90º V8
Location Front, longitudinally mounted
Construction cast-iron block and head
Displacement 5,359 cc / 327 cu in
Bore / Stroke 101.6 mm (4 in) / 82.6 mm (3.3 in)
Compression 11.3:1
Valvetrain 2 valves / cylinder, OHV
Fuel feed Carter AFB Carburettor
Aspiration Naturally Aspirated
Power 340 bhp / 254 KW @ 6,000 rpm
BHP/Liter 63 bhp / liter

Drivetrain
Chassis steel semi-monocoque
Front suspension double wishbones, coil springs, anti-roll bar
Rear suspension DeDion axle, double longitudinal swing arms with Watt linkage, coil springs
Brakes discs, all-round
Gearbox 4 speed Manual
Drive Rear wheel drive

Dimensions
Weight 1,400 kilo / 3,087 lbs
Length / Width / Height 4,970 mm (195.7 in) / 1,780 mm (70.1 in) / 1,320 mm (52 in)
Wheelbase / Track (fr/r) 2,700 mm (106.3 in) / 1,410 mm (55.5 in) / 1,410 mm (55.5 in)

Performance figures
Power to weight 0.24 bhp / kg
