  Mercer Type 45 Raceabout


  Article Image gallery (17) 4 Specifications

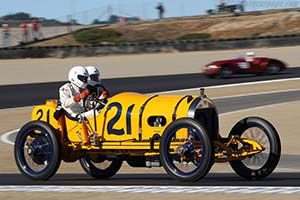

Click here to open the Mercer Type 45 Raceabout gallery
Country of origin:United States
Produced in:1914
Author:Wouter Melissen
Last updated:October 23, 2008
Download: All images

Engine
Configuration Beaver Straight 4
Location Front, longitudinally mounted
Construction cast-iron block and head
Displacement 7,341 cc / 448 cu in
Bore / Stroke 121.9 mm (4.8 in) / 157.5 mm (6.2 in)
Valvetrain 2 valves / cylinder, Side-valve, with two lateral camshafts
Fuel feed Fletcher Carburettor
Aspiration Naturally Aspirated
Power 150 bhp / 112 KW @ 1,800 rpm
BHP/Liter 20 bhp / liter

Drivetrain
Chassis steel ladder frame
Suspension (fr/r) live axle, semi-elliptic leaf springs, friction dampers
Brakes rear drums
Gearbox 4 speed Manual
Drive Rear wheel drive

Dimensions
Wheelbase / Track (fr/r) 2,743 mm (108 in) / 1,422 mm (56 in) / 1,422 mm (56 in)
