  KTM X-Bow 'Race'


  Article Image gallery (7) Specifications

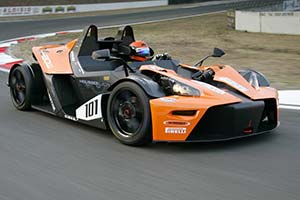

Click here to open the KTM X-Bow 'Race' gallery
Country of origin:Austria
Introduced in:2008
Source:Company press release
Last updated:October 29, 2008
Download: All images

Engine
Configuration Audi TFSI Straight 4
Location Mid, transversely mounted
Construction cast-iron block, aluminium head
Displacement 1,984 cc / 121.1 cu in
Bore / Stroke 82.5 mm (3.2 in) / 92.8 mm (3.7 in)
Valvetrain 4 valves / cylinder, DOHC
Fuel feed Direct Fuel Injection
Aspiration Turbo
Power 237 bhp / 177 KW @ 5,500 rpm
Torque 310 Nm / 229 ft lbs @ 2,000 - 5,000 rpm
BHP/Liter 119 bhp / liter

Drivetrain
Chassis carbon fibre monocoque with aluminium rear subframe
Front suspension double wishbones, push-rod actuated coil springs over dampers, anti-roll bar
Rear suspension double wishbones, coil springs over dampers, anti-roll bar
Brakes (fr/r) Brembo ventilated discs
Gearbox 6 speed Manual
Drive Rear wheel drive

Dimensions
Weight 825 kilo / 1,819 lbs
Length / Width / Height 3,738 mm (147.2 in) / 1,900 mm (74.8 in) / N/A
Wheelbase / Track (fr/r) 2,430 mm (95.7 in) / N/A / N/A

Performance figures
Power to weight 0.29 bhp / kg
Top Speed 220 km/h (137 mph)
0-60 mph 3.8 s
0-100 mph 8.5 s
