  AC 428 Convertible


  Article Image gallery (19) CF 33 Specifications

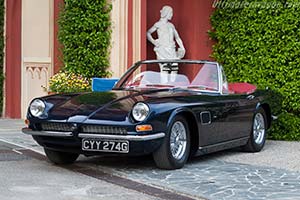

Click here to open the AC 428 Convertible gallery
Built in:Thames Ditton, Surrey, England
Produced from:1965 - 1973
Numbers built:80 (29 Convertibles)
Designed by:Pietro Frua
Author:Wouter Melissen
Last updated:May 29, 2009
Download: All images

Engine
Configuration Ford 90º V8
Location Front, longitudinally mounted
Construction cast-iron block and head
Displacement 7,016 cc / 428.1 cu in
Bore / Stroke 105.0 mm (4.1 in) / 101.2 mm (4 in)
Compression 10.5:1
Valvetrain 2 valves / cylinder, OHV
Fuel feed Carburettor
Aspiration Naturally Aspirated
Power 345 bhp / 257 KW @ 4,600 rpm
Torque 626 Nm / 462 ft lbs @ 2,800 rpm
BHP/Liter 49 bhp / liter

Drivetrain
Chassis steel body on steel tubular backbone chassis
Suspension (fr/r) double wishbones, coil springs over dampers
Steering rack-and-pinion
Brakes Girling discs, all-round
Gearbox 3 speed Automatic
Drive Rear wheel drive

Dimensions
Weight 1,483 kilo / 3,270 lbs
Length / Width / Height 4,509 mm (177.5 in) / 1,702 mm (67 in) / 1,257 mm (49.5 in)
Wheelbase / Track (fr/r) 2,438 mm (96 in) / 1,397 mm (55 in) / 1,422 mm (56 in)

Performance figures
Power to weight 0.23 bhp / kg
Top Speed 225 km/h (140 mph)
0-60 mph 5.9 s
0-100 mph 14.3 s
