  Ferrari Dino 246 Tasman


  Article Image gallery (13) 0010 Specifications

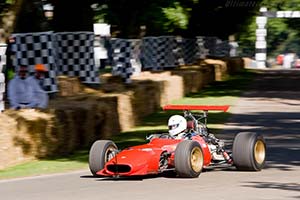

Click here to open the Ferrari Dino 246 Tasman gallery
Country of origin:Italy
Produced from:1968 - 1969
Numbers built:7 (Three of which were converted to Tasman spec at one point)
Author:Wouter Melissen
Last updated:October 20, 2008
Download: All images

Engine
Configuration Dino Type 246 T 65º V6
Location Mid, longitudinally mounted
Construction light alloy block and head
Displacement 2,405 cc / 146.8 cu in
Bore / Stroke 90.0 mm (3.5 in) / 63.0 mm (2.5 in)
Compression 11.5:1
Valvetrain 3 valves / cylinder, DOHC
Fuel feed Lucas Fuel Injection
Aspiration Naturally Aspirated
Power 285 bhp / 213 KW @ 8,900 rpm
BHP/Liter 119 bhp / liter

Drivetrain
Chassis semi-monocoque
Suspension (fr/r) double wishbones, coil springs
Brakes discs, all-round
Gearbox 5 speed Manual
Drive Rear wheel drive

Dimensions
Weight 440 kilo / 970 lbs
Wheelbase / Track (fr/r) 2,220 mm (87.4 in) / 1,405 mm (55.3 in) / 1,400 mm (55.1 in)

Performance figures
Power to weight 0.65 bhp / kg

Auctions
Past sales

Resources
Suggested reading
  • Dino, the little Ferrari, by Doug Nye
