  Porsche 911 Turbo


  Article Image gallery (5) Specifications User Comments (1)

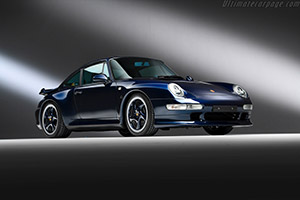

Click here to open the Porsche 911 Turbo gallery
Country of origin:Germany
Produced from:1996 - 1998
Numbers built:5969
Internal name:993
Author:Wouter Melissen
Last updated:Before December 1st, 2004
Download: All images

Engine
Configuration M64/60 B6
Location Rear, longitudinally mounted
Construction aluminium alloy block and head
Displacement 3,600 cc / 219.7 cu in
Bore / Stroke 100.0 mm (3.9 in) / 76.4 mm (3 in)
Compression 8.0:1
Valvetrain 2 valves / cylinder, SOHC
Fuel feed Bosch Motronic Electronic Sequential Port Fuel Injection
Lubrication Dry sump
Aspiration Twin Turbochargers
Power 402 bhp / 300 KW @ 5,750 rpm
Torque 542 Nm / 400 ft lbs @ 4,500 rpm
BHP/Liter 112 bhp / liter

Drivetrain
Chassis steel monocoque
Front suspension McPherson struts, lower A-arms, coil springs, tube shocks, anti-roll bar
Rear suspension dual lateral links, lower A-arms, toe links, coil springs, tube shocks, anti-roll bar
Steering rack-and-pinion, variable power-assisted
Brakes ventilated, cross-drilled discs all-round, ABS
Gearbox 6 speed Manual
Drive All wheel drive

Dimensions
Weight 1,583 kilo / 3,490 lbs
Length / Width / Height 4,245 mm (167.1 in) / 1,795 mm (70.7 in) / 1,285 mm (50.6 in)
Wheelbase / Track (fr/r) 2,272 mm (89.4 in) / 1,411 mm (55.6 in) / 1,504 mm (59.2 in)

Performance figures
Power to weight 0.25 bhp / kg
Top Speed 290 km/h (180 mph)
0-60 mph 3.9 s
0-100 mph 9.9 s
