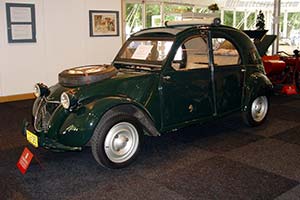

  Citroën 2CV Sahara


Citroën 2CV Sahara Citroën 2CV Sahara Citroën 2CV Sahara
Click here to save all images    Image credits: Wouter Melissen

Click here to download printer friendly version Citroen have always been known for the extravagant and advanced cars, the 2CV is no exception. First launched in 1948 as the ultimate utilitarian vehicle, the 2CV excelled in simplicity, which made it very easy to maintain and run. In many ways the 2CV was very similar to its German counterpart, the Beetle. Today both cars still have a large group of fans and are considered automotive icons.

Very little about the 2CV's design can be considered conventional, as it was quite a departure from pre-War car design. Power came from a small air-cooled two-cylinder boxer engine. A simple unitary chassis construction was used suspended by coil springs all around. The suspension gave the 2CV its characteristic 'wobbly' ride that earned it the nickname 'duck' in some countries.

immediately after the 2CV's launch it was popular with farmers for which the car's simple construction was perfectly suited. To add to the vehicle's versality Citroen planned to introduce a four-wheel-drive. A conventional all wheel drive setup would be both costly to develop and would make the car much more complicated. Citroen bypassed both problems with an ingenious yet very simple solution.

Instead of complicating the driveline, Citroen fitted a second engine in the trunk of the 2CV to power the rear wheels. The two engines were completely independent units with their own gearboxes, fuel tanks and starter buttons. On flat surfaces just one of the engines could be used to save fuel and on rough terrain the second engine could be engaged.

To accomodate for the second engine, the floorpan was modified. The new rear suspension resembled the front suspension quite closely. Both the front and rear suspension were beefed up to handle the added abuse the 4WD 2CV was set to sustain. The two seperate fuel tanks were mounted under the driver and passenger seats, with the filler caps visible through both doors.

It was dubbed 2CV Sahara, after the terrain it was to be used on. With all wheels driven, few roads were too steep or slippery for the 2CV Sahara. Like many 'Saharas', the featured car was used by an oil company in the dessert of the Middle East. After a long hibernation it was found again and restored. It remains as one of the rare survivors of the 'Sahara's' limited production run.

Christie's offered chassis no. 449 for sale in the Paleis 't Loo Concours d'Elegance auction, where it sold for EUR21,150.

Article by Wouter Melissen, last updated before 12 / 01 / 2004

Add your comments on the Citroën 2CV Sahara



General specifications
Country of origin France
Chassis number 0449
Numbers built 694 (only 27 exist today)
Produced from 1958 - 1966

Engine
Configuration air-cooled B2
Location Front and rear, longitudinally mounted
Displacement 0.425 liter / 25.9 cu in
Bore / Stroke 66.0 mm (2.6 in) / 62.0 mm (2.4 in)
Compression 7.0:1
Valvetrain 2 valves / cylinder, OHV
Fuel feed Solex Carburettor
Aspiration Naturally Aspirated
Power 12 bhp / 9 KW @ 3500 rpm
Torque 23 Nm / 17 ft lbs @ 1800 rpm
BHP/Liter 28 bhp / liter

Drivetrain
Chassis body on platform frame
Suspension (fr/r) independent, coil springs
Brakes drums, all-round
Gearbox 4 speed Manual
Drive All wheel drive

Dimensions
Weight 735 kilo / 1620.4 lbs
Length / Width / Height 3778 mm (148.7 in) / 1480 mm (58.3 in) / 1600 mm (63 in)
Wheelbase / Track (fr/r) 2370 mm (93.3 in) / 1260 mm (49.6 in) / 1260 mm (49.6 in)

Performance figures
Power to weight 0.02 bhp / kg
Top Speed 105 km/h (65 mph)
