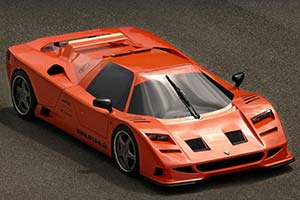

Orca C113

Orca C113 Orca C113 Orca C113 Orca C113 Orca C113 Orca C113
Click here to save all images    Image credits: Orca Engineering ltd.



Click here to download printer friendly version It's many automotive enthusiast's dream to construct a supercar of their own design, but there are only a few of us who actually go ahead and do it. Most of these attempts result in stunning one-offs, but only a very few hit production. One of these rare successes is Pagani, but there could very well be a new addition to the supercar arena. Like the Pagani Zonda, the Swiss designed and built Orca uses the latest exotic materials to save as much weight as possible.

Fifteen years of work of Rene Beck and his father culminated in the launch of the Orca C113 at the 2002 Geneva Motorshow. The bright blue coupe's angular design was clearly inspired by the F117 Stealth fighterplane, possibly with the idea of evading the police radars. With a Turbocharged Volvo five cylinder engine mounted behind the driver, this would be a very usable feature. According to the manufacturer, the designer was inspired, like its name suggests, by the killer whale.

Orca returned to Geneva in 2005 with a production ready version of the C113, which featured a new engine. Supplied by MTM, the tweaked Audi twin Turbo V8 only increases the need for radar reflection. Extensive use of carbon fibre kept the weight down to an impressive 850 kg, which should make it a lot nimbler than its aquatic namesake. The low drag body, high output and light weight should give the Orca stellar performance figures, although the manufacturer suggested sub 3 second 0-60 mph acceleration and 224 mph top speed claim might be a bit optimistic.

Production is to be set at 99 examples per year for the C113 coupe and R113 convertible models. For those whose intestines can handle a little more abuse there also is a 850 bhp version, dubbed SC7, in the making, with production limited to only seven examples. Time will tell if these performance and production claims can be met, but history has learned that the odds are against the Swiss manufacturer.

Article by Wouter Melissen, last updated on 05 / 30 / 2005

Add your comments on the Orca C113


General specifications
Country of origin Switzerland
Numbers built 99 (proposed)
Introduced 2005

Engine
Configuration Audi V 8
Location Mid, transversely mounted
Construction aluminium block and head
Displacement 4.172 liter / 254.6 cu in
Bore / Stroke 84.5 mm (3.3 in) / 93.0 mm (3.7 in)
Valvetrain 5 valves / cylinder, DOHC
Fuel feed Fuel Injection
Aspiration Twin Turbos

Drivetrain
Chassis/body carbon fibre monocoque
Suspension (fr/r) double wishbones, coil springs over adjustable gas shock absorbers
Brakes ventilated and cross drilled carbon ceramic discs, all-round
Gearbox 7 speed Semi-automatic
Drive Rear wheel drive

Dimensions
Weight 850 kilo / 1873.9 lbs
Length / Width / Height 4020 mm (158.3 in) / 2020 mm (79.5 in) / 960 mm (37.8 in)

Performance figures
Power 650 bhp / 485 KW @ 5400 rpm
Torque 900 Nm / 664 ft lbs @ 4000 rpm
BHP/Liter 156 bhp / liter
Power to weight 0.76 bhp / kg
Top Speed 360 km/h / 224 mph
0-60 mph 2.9 s
