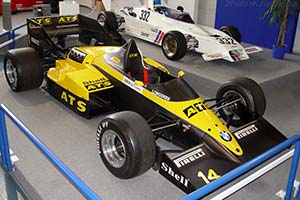

  ATS D7 BMW


ATS D7 BMW ATS D7 BMW ATS D7 BMW ATS D7 BMW ATS D7 BMW
Click here to save all images    Image credits: Wouter Melissen

Click here to download printer friendly version In 1977 German wheel manufacturer ATS expanded their horizon by entering Formula 1 racing. Led by the sometimes enigmatic Hans Gunther Schmid, the ATS team rarely proved to be more than a grid filler despite attracting some of the more talented designers and drivers. In its first season the team used two Penske PC4s, but starting 1978 the team produced their own single seater racers. Powered by the good old Cosworth V8, the ATS cars were very similar to the kit-cars that made up the bulk of the field at the turn of the decade.

Renault's Turbo revolution quickly left the Cosworth engine obsolete, and for 1983 Schmid had managed to secure an engine deal with BMW. Austrian designer Gustav Brunner penned an all carbon fibre chassis to go with the Turbo charged four cylinder engine. Despite the advanced materials and very potential engine, the ATS D6 failed to impress. In the same season the Brabham team did manage to suck the full potential out of the engine and its driver Nelson Piquet won the World Driver's Championship.

For 1984 the D6's design was modified by Brunner creating the slightly slimmer D7. Shortly after the Austrian designer left the team, as so many had done before him. Lead driver Manfred Winkelhock continued where he had left off in 1983 and again failed to score a single point. Halfway through the season he was joined by debutant Gerhard Berger and he managed to finish sixth in the Italian Grand Prix. Due to a technicality this point scoring finish was not actually converted in a World Championship point.

At the end of the season BMW ended the engine deal, leaving Schmid engine-less. This was the final blow for the German team, which retired after eight seasons and 311 appearances. Schmid returned to the sport once more in 1988 with the Brunner designed Rial, but with two points finishes in as many years, it was no improvement over his first attempt.

Article by Wouter Melissen, last updated on June 14, 2005

Add your comments on the ATS D7 BMW



General specifications
Country of origin Germany
Numbers built 2
Produced in 1984
Body design Gustav Brunner

Engine
Configuration BMW M 12/13 Straight 4
Location Mid, longitudinally mounted
Construction cast iron block, light alloy head
Displacement 1.499 liter / 91.5 cu in
Bore / Stroke 89.2 mm (3.5 in) / 60.0 mm (2.4 in)
Compression 6.7:1
Valvetrain 4 valves / cylinder, DOHC
Fuel feed Bosch/Kugelfischer Fuel Injection
Aspiration KKK Turbo
Power 750 bhp / 560 KW @ 10500 rpm
Torque 480 Nm / 354 ft lbs @ 8500 rpm
BHP/Liter 500 bhp / liter

Drivetrain
Chassis carbon fibre monocoque
Front suspension double wishbones, pull-rod actuated dampers
Rear suspension double wishbones, push-rod actuated dampers
Steering rack-and-pinion
Brakes discs, all-round
Gearbox ATS / Hewland 5 speed Manual
Drive Rear wheel drive

Dimensions
Weight 548 kilo / 1208.1 lbs
Wheelbase / Track (fr/r) 2735 mm (107.7 in) / 1795 mm (70.7 in) / 1700 mm (66.9 in)

Performance figures
Power to weight 1.37 bhp / kg
