  Tyrrell 004 Cosworth


  Article Image gallery (15) 004 Specifications

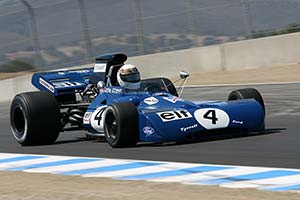

Click here to open the Tyrrell 004 Cosworth gallery
Country of origin:Great Britain
Produced in:1972
Numbers built:1
Designed by:Derek Gardner for Tyrrell
Author:Wouter Melissen
Last updated:September 18, 2006
Download: All images

Engine
Configuration Ford Cosworth DFV 90º V8
Location Mid, longitudinally mounted
Weight 168 kilo / 370.4 lbs
Construction aluminium block and head
Displacement 2,993 cc / 182.6 cu in
Bore / Stroke 85.7 mm (3.4 in) / 64.8 mm (2.6 in)
Compression 11.8:1
Valvetrain 4 valves / cylinder, DOHC
Camshaft Gear driven
Fuel feed Lucas Fuel Injection
Lubrication Dry sump
Aspiration Naturally Aspirated
Power 450 bhp / 336 KW @ 10,000 rpm
BHP/Liter 150 bhp / liter

Drivetrain
Chassis aluminium monocoque
Suspension (fr/r) double wishbones, coil springs
Steering rack-and-pinion
Brakes discs, all-round
Gearbox Hewland FG 500 5 speed Manual
Drive Rear wheel drive

Dimensions
Weight 560 kilo / 1,235 lbs
Wheelbase / Track (fr/r) 2,426 mm (95.5 in) / 1,590 mm (62.6 in) / 1,647 mm (64.8 in)

Performance figures
Power to weight 0.8 bhp / kg
