| Engine
|
| Configuration |
Ford Duratec Straight 4
|
| Location |
Front, longitudinally mounted
|
| Construction |
alloy block and head
|
| Displacement |
2,261 cc / 138 cu in |
| Bore / Stroke |
87.5 mm (3.4 in) / 94.0 mm (3.7 in)
|
| Compression |
12.0:1 |
| Valvetrain |
4 valves / cylinder, DOHC
|
| Fuel feed |
Fuel Injection
|
| Aspiration |
Naturally Aspirated |
| Power |
260 bhp / 194 kW
@ 7,500 rpm
|
| Torque |
271 Nm / 200 ft lbs
@ 6,200 rpm
|
| BHP/Liter |
115 bhp / liter |
| Drivetrain |
| Chassis |
composite body on tubular spaceframe |
| Front suspension |
double wishbones, push-rod operated coil springs over dampers |
| Rear suspension |
double wishbones, coil springs over dampers |
| Steering |
rack-and-pinion |
| Brakes |
ventilated discs, all-round |
| Gearbox |
6 speed Manual
|
| Drive |
Rear wheel drive |
| Dimensions |
| Weight |
565 kilo / 1,246 lbs |
| Length / Width / Height |
3,300 mm (129.9 in) / 1,740 mm (68.5 in) / 1,140 mm (44.9 in)
|
| Wheelbase / Track (fr/r) |
2,300 mm (90.6 in) / 1,490 mm (58.7 in) / 1,465 mm (57.7 in)
|
| Performance figures |
| Power to weight |
0.46 bhp / kg |
| Top Speed |
250 km/h (155 mph)
|
| 0-60 mph |
3.1 s |
|
Ultimatecarpage.com
> Cars by brand
> Great Britain
> Caterham

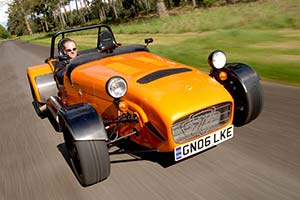

CSR 260 Superlight
