  Eagle Mark 7 Ford


  Article Image gallery (23) Chassis (3) Specifications

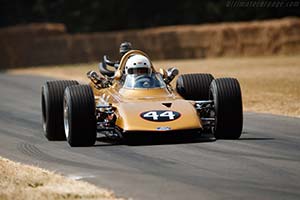

Click here to open the Eagle Mark 7 Ford gallery
Country of origin:United States
Produced in:1969
Numbers built:4
Author:Wouter Melissen
Last updated:April 23, 2020
Download: All images

Engine
Configuration Ford 90º V8
Location Mid, longitudinally mounted
Displacement 2,605 cc / 159 cu in
Valvetrain 4 valves / cylinder, DOHC
Fuel feed Hilborn Fuel Injection
Aspiration Garrett AiResearch Turbo
Power 700 bhp / 522 kW
BHP/Liter 269 bhp / liter

Drivetrain
Chassis aluminium monocoque
Front suspension double wishbones, coil springs over dampers, anti-roll bar
Rear suspension lower wishbones, top links, twin trailing arms, coil springs over dampers, anti-roll bar
Steering rack-and-pinion
Brakes (fr/r) Girling ventilated discs, 305mm (12 in)
Gearbox Hewland 4 speed Manual
Drive Rear wheel drive

Dimensions
Weight 654 kilo / 1,442 lbs
Wheelbase / Track (fr/r) 2,537 mm (99.9 in) / 1,448 mm (57 in) / 1,412 mm (55.6 in)
Fuel tank 284 Litre (75 Gallon US / 62.5 Gallon Imperial)
Wheels (fr/r) 10 x 15 / 14 x 15

Performance figures
Power to weight 1.07 bhp / kg
