| Engine
|
| Configuration |
Acura 75º V6
|
| Location |
Mid, longitudinally mounted
|
| Construction |
light alloy block and head
|
| Displacement |
3,493 cc / 213.2 cu in |
| Bore / Stroke |
91.4 mm (3.6 in) / 88.9 mm (3.5 in)
|
| Valvetrain |
4 valves / cylinder, DOHC
|
| Camshaft |
Chain driven
|
| Fuel feed |
Fuel Injection
|
| Lubrication |
Dry sump |
| Aspiration |
Twin Turbo |
| Power |
500 bhp / 373 kW
@ 6,500 - 7,500 rpm
|
| Torque |
550 Nm / 406 ft lbs
@ 2,000 - 6,000 rpm
|
| Red Line |
7,500 rpm |
| BHP/Liter |
143 bhp / liter |
| Engine
|
| Configuration |
Acura Electric Motor
|
| Location |
Mid, longitudinally mounted
|
| Power |
47 bhp / 35 kW
@ 3,000 rpm
|
| Torque |
148 Nm / 109 ft lbs
@ 500 - 2,000 rpm
|
| Engine (2x)
|
| Configuration |
Acura Electric Motor
|
| Location |
Front, transversely mounted
|
| Power |
36 bhp / 27 kW
@ 4,000 rpm
|
| Torque |
73 Nm / 54 ft lbs
|
| Drivetrain |
| Body |
aluminium and sheet moulding composite panels |
| Chassis |
aluminium and steel spaceframe with stressed carbon-fibre composite floor |
| Front Brakes |
ventilated carbon ceramic discs, 6-pot caliper, ABS |
| Rear brakes |
ventilated carbon ceramic discs, 4-pot caliper, ABS |
| Gearbox |
9 speed Automatic
|
| Drive |
Front wheel drive |
| Dimensions |
| Wheelbase / Track (fr/r) |
2,630 mm (103.5 in) / 1,655 mm (65.2 in) / 1,615 mm (63.6 in)
|
| Wheels (fr/r) |
8.5 x 19 / 11 x 20 |
| Tyres (fr/r) |
245/30 - ZR19 / 295/30 - ZR20 |
| Performance figures |
| Combined Power |
619 bhp / 462 kW
|
| Combined Torque |
844 Nm / 623 ft lbs
|
|
Ultimatecarpage.com
> Cars by brand
> Japan
> Honda

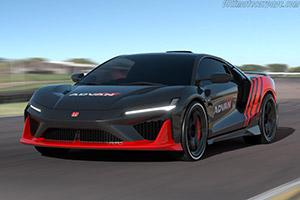

NSX Tribute by Italdesign
